Distortion Circuits: How Pedals Shape Tone
Curious about distortion pedals' technical side? From op-amp circuits to diode clipping, these tone-shapers deserve exploration. Berlin-based producer Nicolás Ricardo picked essential clips covering op-amp fundamentals and five key overdrive styles, including germanium circuits and Klon designs. Understand how these pedals shape sound and make smarter choices for both studio and live applications.
3 videos
How op-amp distortion pedals work
Operational amplifiers allowed for the creation of distortion pedals in the early 70s by starting with a clean boost circuit. Unlike the fuzz pedals of the 60s that overloaded transistors, these distortion pedals used op-amps to amplify the guitar signal cleanly before passing it through diodes. These diodes then clip the loud, clean signal, allowing for unique sound customization and creating the distinct distortion that became a staple in music. This approach offers more control and versatility in shaping the distortion compared to the earlier fuzz pedals.

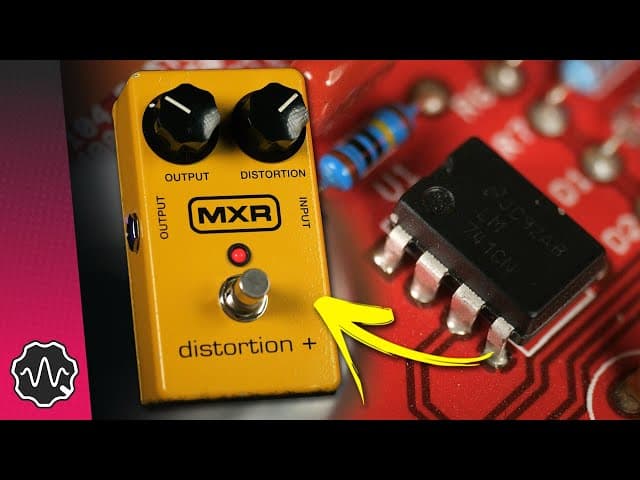

How diode clipping shapes op-amp distortion tone
The MXR Distortion Plus utilizes a 741 op-amp to achieve its signature distortion sound, with the guitar signal entering through the non-inverting input. The op-amp's differential amplifier compares the two inputs and amplifies the difference, with gain controlled by resistor values in a feedback network. This setup allows for a gain range from a subtle 6 dB boost to a massive 46 dB increase, depending on the resistance. However, the true magic of distortion comes from the germanium diodes, which clip the signal by only allowing voltages above 0.3 volts to pass, creating a distorted output. This combination of op-amp gain staging and diode clipping offers a more refined and controllable distortion compared to the raw fuzz pedals of the 1960s, allowing for a range of tones from a gentle sparkle to a full-on fuzz. The MXR Distortion Plus exemplifies this elegant approach to achieving amplifier-like distortion.
The 5 essential styles of overdrive pedals
Josh Scott from JHS breaks overdrive pedals down into five core circuit types, showing what actually separates one "drive" pedal from another. Soft clipping pedals split into two families. Tube Screamer style circuits boost the midrange, pushing your guitar forward in a mix with a thicker, more saturated feel. Blues Breaker style circuits stay transparent, adding grit without reshaping your tone. Hard clipping pedals put the diodes at the end of the circuit, so the whole signal gets clipped. That makes them rawer and less forgiving, with the DOD 250 and MXR Distortion Plus as the reference points. The Klon Centaur gets its own category. It's a hard clipper, but a dual-pot gain control blends in your clean signal, so it stays articulate even at high gain, unlike other hard clippers. Transistor-based drives like the Blues Driver skip the op-amp entirely, cascading gain stages the way a cranked tube amp does. That gives them real touch response: play hard and they saturate, play light and they clean up.
